SMALL SCALE CRUSHER

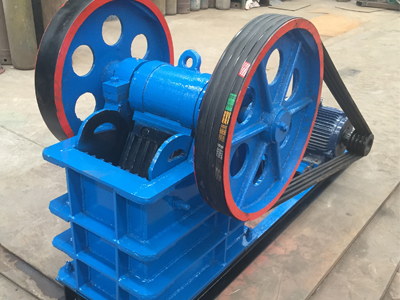

Small Scale Jaw Crusher

  • Product ID:SMALL SCALE CRUSHER
  • Phone: +86-371-55091029
  • Tel: +86 18538798892
  • Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.

I. Working Principle

The working part of the small jaw crusher is two jaw plates, one is fixed jaw plate (fixed jaw), vertical (or slightly inclined at the upper end) is fixed on the front wall of the machine body, and the other is movable jaw plate (movable jaw), position
Inclined to form a crushing cavity (working cavity) with the upper and lower sides and the fixed jaw plate.
The movable jaws make periodic reciprocating movements against the fixed jaws, sometimes separating and sometimes approaching.
When separated, the material enters the crushing cavity, and the finished product is discharged from the lower part; when approaching, the material installed between the two jaws is squeezed, bent and split to be broken.

II. Advantages

 1. Stable swing jaw assembly ;
 2. Low investment ;
 3.Large reduction ratio, optimum design of chamber and high crushing efficiency;
 4.Low operation cost
 5.Price from 800USD-4000 USD







1.Widely applicated in gold ore , copper ore, graphite ore, lead and zinc ore crushing part.
2.Performance stable
3.Low operation cost (change wearing parts 6-12 months)
4.Suitable for small scale miner start investment at the beginning.
5.High crushing ratio
6.Easy operation


Model Max feeding
Size (mm)
Adjusting range
of discharge
opening(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Dimensions
(L*W*H)(mm)
PE-150*250 125 10-40 1-3 5.5 0.8 720*660*850
PE-250*400 210 20-60 5-20 15 2.8 1300*1090*1270
PE-400*600 340 40-100 16-60 30 7 1730*1730*1630
PE-500*750 425 50-100 40-110 55 12 1980*2080*1870
PE-600*900 500 65-160 50-180 55 17 2190*2206*2300
PE-750*1060 630 80-140 110-320 90-110 29 2660*2430*2800
PE-900*1060 685 230-290 230-390 110 33 2870*2420*2940
PE-900*1200 750 95-165 220-450 110 52 3380*2870*3330
PE-1000*1200 850 195-265 315-500 110 55 3480*2876*3330
PE-1200*1500 1020 150-300 400-800 160 100.9 4200*3300*3500
PEX-150*750 120 18-48 8-25 15 3.8 1200*1530*1060
PEX-250*750 210 25-60 13-35 30 5.5 1380*1750*1540
PEX-250*1000 210 25-60 16-52 30 7 1560*1950*1390
PEX-250*1200 210 25-60 20-61 37 9.7 2140*1660*1500
