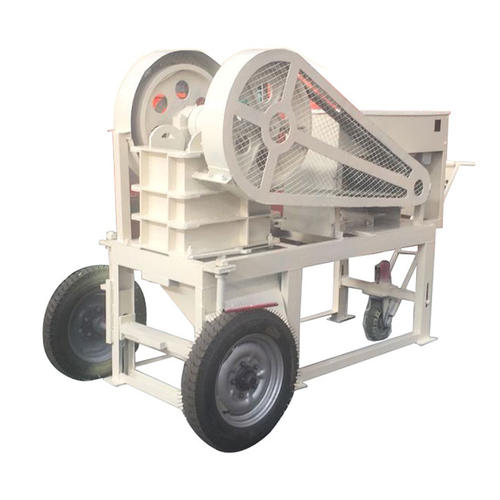

Small Mobile / Portable Crusher

  • Phone: +86-371-55091029
  • Tel: +86 18538798892
  • Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.

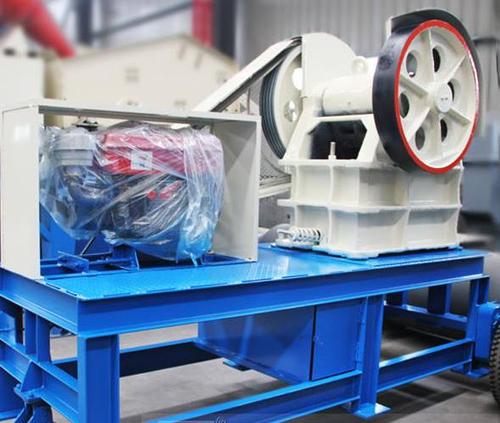

Diesel small jaw crusher working principle

 When the small jaw crusher working, belt and belt pulley are driven by a motor. The movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.

1. Mobile type easy for transporting
2.Low cost
3.Capacity can do 5-30 ton per hour
4.High efficiency
5.Performance stable

Feeder opening size(mm) Max. Feeding size(mm) Discharging opening size(mm) Capacity(t/h) Motor power(kw) verall Dimension
PE150x250 150x250 130 15-45 1-4 5.5 896x745x935
PE200x300 200x300 180 15-50 2-6 7.5 910x750x990
PE200x350 200x350 180 18-70 3-10 7.5 1000x870x990
PE250x400 250x400 210 25-60 5-20 15 1215x1520x1030
