MINERAL GRINDING & CLASSIFYING EQUIPMENT

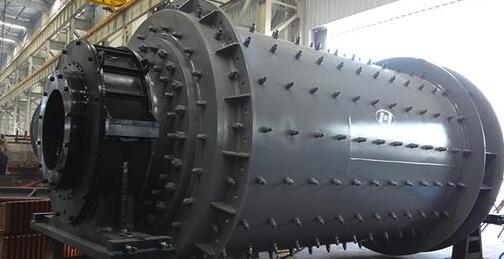

Rod Mill
- Product ID：MINERAL GRINDING & CLASSIFYING EQUIPMENT
- Phone: +86-371-55091029
- Tel: +86 18538798892
- Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.
Rod mill is divided into dry type and wet type and the customers can choose suitable type according specific needs.
Application
The discharging granularity of rod mill is more even and the output capacity is higher. It is widely used in the grinding process that has higher requirement for the uniformity of the final products in wear-resisting material, chemistry, and metallurgy and glass industry and in recent years it is also used in the sand making industry.
Working principle
The motor drives the cylinder to rotate through the reduction gears and the peripheral rack wheel reducer transmission, or the low speed synchronous motor directly drives the cylinder to rotate through the peripheral rack wheel reducer transmission. Inside the cylinder, there are proper ore grinding media-steel rod. Under the eccentric force and frictional force, the ore grinding media are lifted to a certain height and fall down in the state of dropping. The materials to be ground continuously go into the cylinder from the ore feeding mouth and are crushed by the moving grinding media, and then are discharged by the overflow and the force of continuous feeding to go to the next procedure.
1.Granularity of the final products is even
2.Steel rod takes regular movement in the rod mill;
3.Convenient to install and maintain;
4.Rapidly discharging;
5.Even particle size of product, little over grinding.
6.Processing capacity is high
| Model |
Shell specifications(mm) |
Shell rotation speed(r/min) | Feeder granul-arity(mm) | Output granul-arity(mm) | Processing capacity(t/h) | Power(kw) | Weight((kg) | |
| Dia. | Length | |||||||
| MBS0918 | 900 | 1800 | 36-38 | <=25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 4600 |
| MBS0924 | 900 | 2400 | 36 | <=25 | 0.833-0.147 | 0.81-4.3 | 22 | 5100 |
| MBS1224 | 1200 | 2400 | 36 | <=25 | 0.833-0.147 | 1.1-4.9 | 30 | 12000 |
| MBS1530 | 1500 | 3000 | 29.7 | <=25 | 0.833-0.147 | 2.4-7.5 | 75 | 15600 |
| MBS1830 | 1830 | 3000 | 25.4 | <=25 | 0.833-0.147 | 4.8-11.6 | 130 | 28000 |
| MBS2130 | 2100 | 3000 | 23.7 | <=25 | 0.833-0.147 | 14-35 | 155 | 34000 |
| MBS2136 | 2100 | 3600 | 23.7 | <=25 | 0.833-0.147 | 19-43 | 180 | 37000 |
| MBS2430 | 2400 | 3000 | 21 | <=50 | 0.833-0.147 | 25-65 | 245 | 54000 |
| MBS2736 | 2700 | 3600 | 20.7 | <=50 | 0.833-0.147 | 32-86 | 400 | 86000 |
| MBS2740 | 2700 | 4000 | 20.7 | <=50 | 0.833-0.147 | 32-92 | 400 | 94000 |
| MBS3245 | 3200 | 4500 | 18 | <=50 | 0.833-0.147 | 64-180 | 800 |
137000 |
