Mobile Trommel Screen Introduction

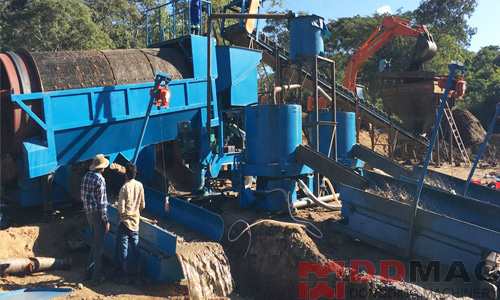

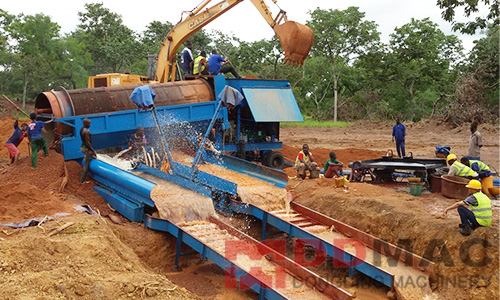

Mobile trommel washing plant is composed by hopper, trommel, chassis, tires, turntable, generator, water pump, gearing, control panel and gold recovery sluice.
The mobile trommel screen is a optimized removable platform for gold recovery, applicable to small or medium scale of placer gold ore processing that need mobile operation.

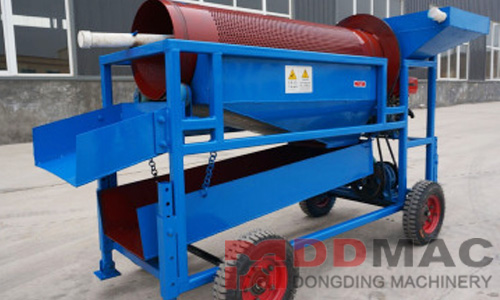

Fixed Trommel Screen Machine

Heavy Duty and Light Duty

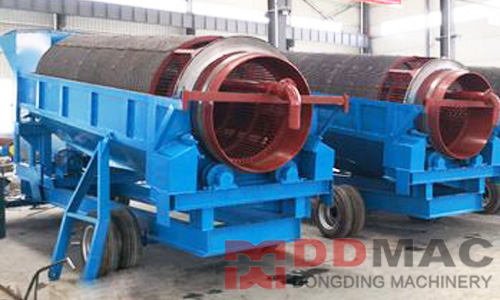

The drum can be divided into heavy duty and light duty.

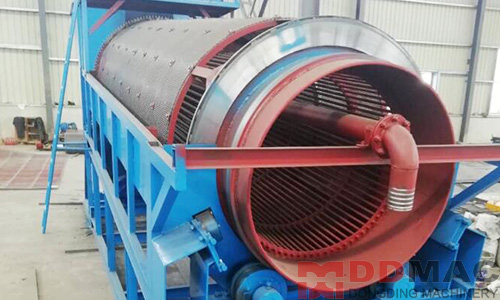

Heavy duty: the drum has a double-layer structure, inner layer with dense steel bar structure, which can prevent large material impact the screen directly, greatly improved the service life and screening efficiency for the outer screen. Light duty: the drum has a single layer screen, it is used in the material that no large material included, its advantage is light, which can reduce the weight of the whole equipment and energy consumption.

We also provide wholesale complete potable gold trommel wash plant:

Mobile Trommel Screen Advantage

1. The whole drum adopts strong and reinforced roller support and gear side drive, or chain pulley drive.
2. It has large processing capacity, high efficiency, long service life, and easy to replace, no clogging.
3. Mobile platform can easily cope with all kinds of complicated road.
4.The chassis equipped with other four mechanical support legs, ensure the equipment run more smoothly, reliable and safe during load running.
5. Generator & motor separated drive, or direct diesel engine drive, low failure rate, easy maintenance.

Mobile Trommel Screen Washing Machine Specification

Technical Parameters
Capacity (t/h) Power (kw) Drum diameter (mm) Drum length (mm) Screen size (mm) Dimension (mm) Weight (kg)
MGT1030 30-50
Diesel engine
1000 3000
3~ 20
5860*1400*2550 3900
MGT1230 50-80 1200 3000 5860*1600*2600 5500
MGT1545 80-120 1500 4500 8310*2180*3030 8600
MGT1848 120-180 1800 4800 8500*2450*4000 9300
