GOLD CIL EQUIPMENT & GRAVITY SEPARATION EQUIPMENT


Jig Machine

  • Product ID:GOLD CIL EQUIPMENT & GRAVITY SEPARATION EQUIPMENT
  • Phone: +86-371-55091029
  • Tel: +86 18538798892
  • Email: sale@zzddjt.com
Interested? Leave a meassge for Tech and Price.

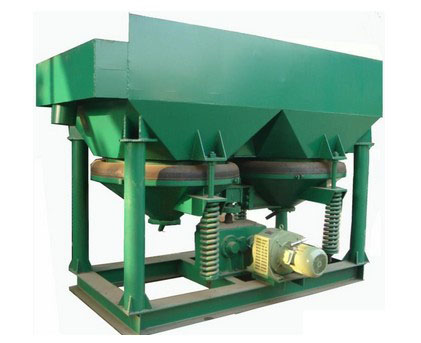

Gold Jig Machine Introduction

Gold Jig Machine are devices used mainly in the mining industry for mineral processing, to separate particles within the ore body, based on their specific gravity.

It is widely used to separator tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.

There are many applications where the jig separator of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

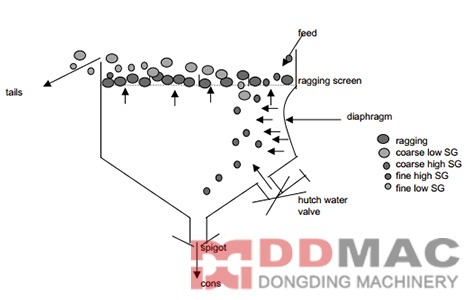

Gold Jig Machine Working Principle

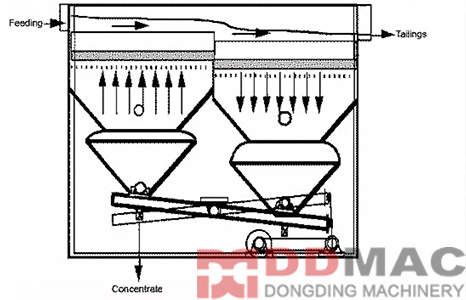

Gold Jig Machine Flow Chart



Mineral Jig Machine Advantages

1. High processing capacity, concentration ratio and high recovery

2. Fabricated with highest quality material

3. Easy to install, operate and maintain

4. The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling

5. The pulsation speed very easy adjusted by regulator

6. Suitable for roughing and desliming


Jig Machine Technical Parameter

Model Jigging Area
(m²)
Feeding Size
(mm)
Water Added
(m³/t)
Water Pressure
(MPa)
Capacity
(t/h)
Power
(kw)
Dimension
(mm)
Weight
(kg)
JT0.57-1 0.57 <6 1-2 ≥0.05 1-3 1.5 1550x780x1530 610
JT1-1 1.04 <10 2-3 ≥0.05 2-4 2.2 2270x1110x1890 900
JT2-2 2.28 <10 2-4 ≥0.05 4-8 3 3225x1550x2050 1640
JT3-1 3.3 <10 3-6 ≥0.05 6-10 5.5 2745x2000x3030 3260
JT4-2 4.33 <25 4-8 ≥0.05 10-15 7.5 4240x1990x2750 4200
JT4-2A 4.33 <25 4-8 ≥0.05 10-15 4x2 4240x1990x2750 4200
JT5-2 4.86 <10 3-6 ≥0.05 12-20 7.5 3600x2000x2600 4500
